AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns, compared to the AMSOIL BE Filters’ 98.6 percent efficiency at three microns.  At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.

    The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance.

    AMSOIL EaBP Filters have a marine powder coated exterior.  Their zinc-dichromate base plates increase rust protection, and they feature the same dimensions and threads as BE-90, BE-100 and BE-110, so they are compatible with existing AMSOIL bypass filter mounts.  EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve.  The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

    When used in conjunction with AMSOIL motor oil and an AMSOIL EaO or Donaldson Endurance™ filter, the EaBP should be changed every other full-flow filter change up to 60,000 miles. When used with other brands of motor oil or full-flow filters, the EaBP filter should be changed every other full-flow filter change.  AMSOIL recommends using oil analysis when extending oil drain intervals.

    The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased and engine life is extended significantly.

    AMSOIL has designed a new high-efficiency bypass filter element that is also a soot removal device.  AMSOIL Ea Bypass Filters use a synthetic/cellulose sandwiched media.  The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer.  These filters remove 39 percent of soot contaminants less than one micron.  Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter, even higher in conjunction with Ea Oil Filters or Donaldson Endurance filters.

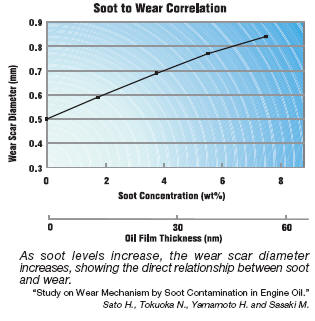

    The combustion process of diesel engines creates soot.  After fuel is injected, combustion occurs with elevated soot levels as a byproduct of the process, and the combustion particulates become trapped on the exposed oil film.  The rings wipe the particulates into the oil and the fine particulates aggregate, increasing levels of soot in the oil.  Oil with dispersant additives will generally keep soot in the range of 0.002 to 0.5 microns in suspension; detergent additives prevent the build-up of sludge and act as an acid neutralizer, keeping soot in the range of 0.5 to 1.5 microns in suspension.  These anti-wear additives work by providing a sacrificial chemical-to-chemical barrier.  As the amount of soot suspended in the oil increases, the performance of these additives decreases.

    AMSOIL will continue to offer three bypass filters: the EaBP-90, EaBP-100 and EaBP-110.  All vehicles and applications that can accept the AMSOIL BMK-11, 12, 13, 15, 16, 17 and 18 filter mounts can use the EaBP Filters.  Per AMSOIL bypass installation instructions, AMSOIL recommends bypass filters be mounted as close to vertical as possible.  The filters are equipped with an anti-drain back valve in the event they are mounted at an angle.

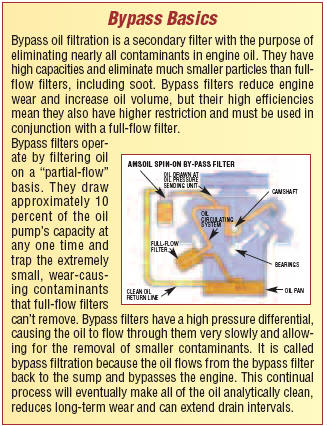

    Bypass filtration comes standard on all heavy-duty turbo diesel engine applications from OEMs such as Cummins, Mack and many more.  It has been available as standard equipment or as an option from OEMs like Caterpillar, John Deere, Case and others, but it isn’t just for heavy-duty diesel operators.  Bypass filtration is a valuable commodity for anyone that wants to extend drain intervals and prolong engine life.  It is also beneficial to vehicles that are exposed to high levels of contaminants on a regular basis.
